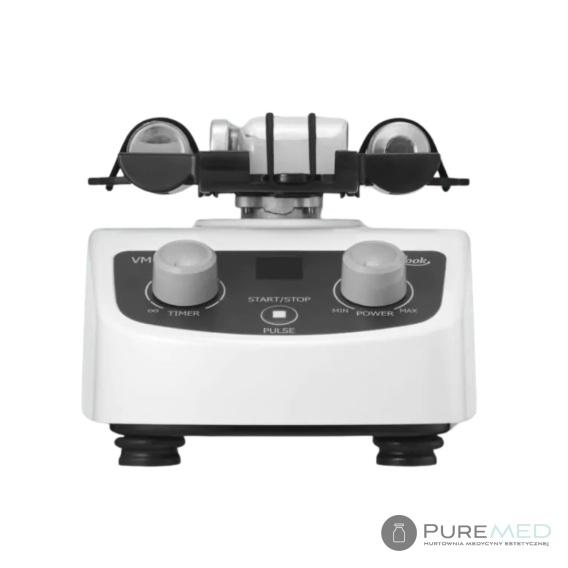

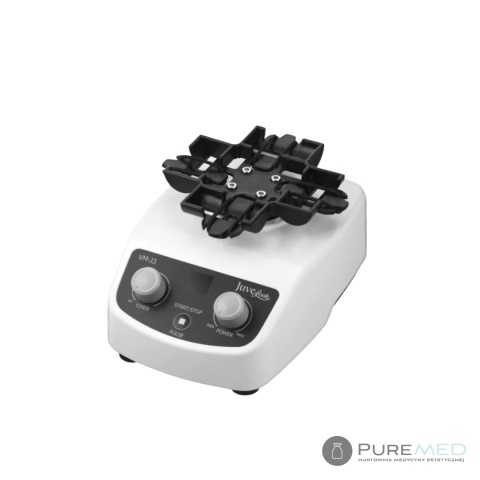

VORTEX III - laboratory shaker

Vortex III is a modern, compact orbital laboratory shaker designed for fast and precise mixing of liquid preparations used in mesotherapy and aesthetic procedures (e.g. JuveLook, Lenisna). The VM-J3 features a fixed 4-ampoule platform, brushless DC motor, electronic timer and robust powder-coated aluminium housing.

Key features

• Fixed 4-ampoule platform for JuveLook / Lenisna.

• Operates correctly with any number of ampoules — no counterbalance required.

• Electronic timer for precise run times.

• Speed range: 1,600–3,600 rpm (±150 rpm).

• Operation modes: continuous, timer, pulse.

• Orbital motion — orbit diameter Ø 4.0 mm.

• Stepless speed control.

• Brushless DC motor — quiet and durable operation.

• Anti-slip pad for device stability.

• Powder-coated aluminium housing.

• Power: Input AC 100–240 V, Output 24 V / 1.0 A.

Applications

• Mixing aesthetic preparations (JuveLook, Lenisna).

• Mesotherapy and revitalization procedures.

• Medical and aesthetic labs requiring repeatable, controlled mixing.

Usage / notes

• For professional use only.

• Do not exceed maximum load of 0.5 kg.

• Read the user manual before operation.

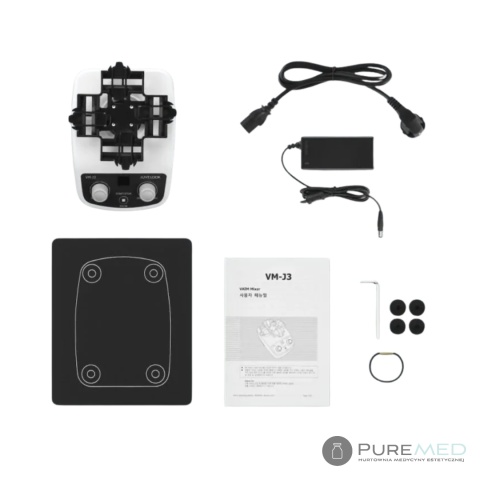

Package contents (to confirm)

• Vortex III (VM-J3) unit — 1 pc.

• (to confirm with supplier): power cable, platform adapters / holders, anti-vibration pad, user manual.

Technical specification

• Model: VM-J3

• Motion type: Orbital

• Speed range: 1,600 – 3,600 rpm (±150 rpm)

• Modes: Continuous / Timer / Pulse

• Orbit diameter: Ø 4.0 mm

• Speed control: Stepless

• Working head: Fixed platform (4 mounting points)

• Housing: Powder-coated aluminium

• Motor: Brushless DC motor

• Operating temp.: 5°C – 40°C

• Humidity: < 80%

• Max. load / Power: 0.5 kg / 24 W

• Device dims (W × D × H): 134 × 190 × 140 mm

• Net weight: 2.63 kg

• Packed dims: 190 × 250 × 215 mm

• Gross weight: 2.90 kg

• Power supply: Input AC 100–240 V 50/60 Hz / Output 24 V / 1.0 A
